Optoelectronics
شماره فنی لبخند Labkhand part number
شماره فنی Part number
کارخانه سازنده Manufacturer
شرح فنی Description
Product category
Rohs
Package case
Data rate
Output type
Number of channels
If forward current
Isolation voltage
Vf forward voltage
Vr reverse voltage
Pd power dissipation
حداقل دمای عملیاتی Min operating temperature
حداکثر دمای عملیاتی Max operating temperature
Packaging
Moisture sensitive
Current transfer ratio
Product type
Factory pack quantity
Subcategory
Illumination color
Led size
Wavelength
Luminous intensity
Mounting type
Lens color style
Configuration
Lens shape
Number of leds
Orientation
Part aliases
Viewing angle
Unit weight
Maximum collector
Maximum collector current
Maximum collector emitter
Series
ارتفاع Height
Length
عرض Width
Collector emitter breakdown
Mounting style
Fall time
Rise time
| محصول | جزئیات محصول | شماره فنی لبخند Labkhand part number | شماره فنی Part number | کارخانه سازنده Manufacturer | شرح فنی Description | Product category | Rohs | Package case | Data rate | Output type | Number of channels | If forward current | Isolation voltage | Vf forward voltage | Vr reverse voltage | Pd power dissipation | حداقل دمای عملیاتی Min operating temperature | حداکثر دمای عملیاتی Max operating temperature | Packaging | Moisture sensitive | Current transfer ratio | Product type | Factory pack quantity | Subcategory | Illumination color | Led size | Wavelength | Luminous intensity | Mounting type | Lens color style | Configuration | Lens shape | Number of leds | Orientation | Part aliases | Viewing angle | Unit weight | Maximum collector | Maximum collector current | Maximum collector emitter | Series | ارتفاع Height | Length | عرض Width | Collector emitter breakdown | Mounting style | Fall time | Rise time | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
قیمت: ۶۶,۵۶۰ تومان موجودی: 3

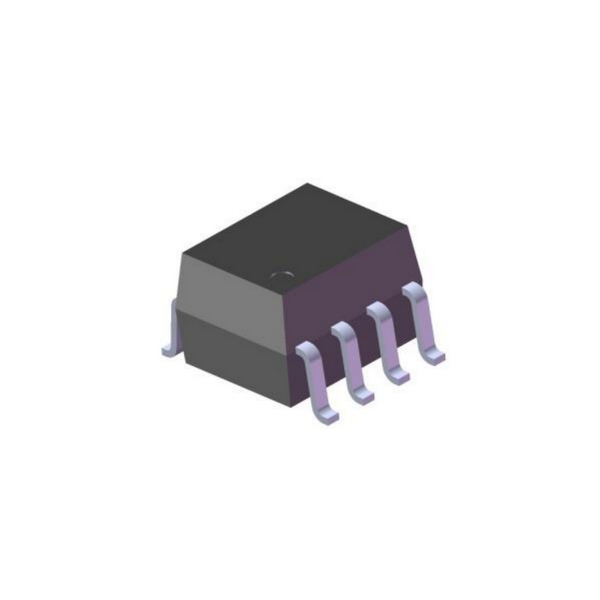

| 638-EL0452TA | EL0452(TA) | Everlight | High Speed Optocouplers Optocouplers, SO-8 | High Speed Optocouplers | YES | SO-8 | 1 Mb/s | Photodarlington | 1 Channel | 16 mA | 3750 Vrms | 1.45 V | 5 V | 100 mW | - 55 C | + 100 C | Cut Tape / Reel / Bulk | Yes | 19 % to 50 % | High Speed Optocouplers | 2000 | Optocouplers | |||||||||||||||||||||||||||||||||||||||||
قیمت: ۲۸۲,۸۸۰ تومان موجودی: 24
| 607-5680F55 | 5680F5_5 | VCC | LED Circuit Board Indicators GREEN DIFFUSED BI-LEVEL | LED Circuit Board Indicators | YES | 10 mA | 2.2 V | Bulk | LED Circuit Board Indicators | 100 | LED Indication | Green | 3 mm | 562 nm | 16 mcd | Through Hole | Tinted | 2 Single Color LEDs, Bi-Level | Dome | 2 | Right Angle | 5680F5;5 | |||||||||||||||||||||||||||||||||||||||||
قیمت: ۵۲,۰۰۰ تومان موجودی: 99
| 604-WP934EB/2GD | WP934EB/2GD | Kingbright | LED Circuit Board Indicators T1 BI-LEVEL GRN DIF | LED Circuit Board Indicators | YES | 20 mA | 2.2 V | Bulk | LED Circuit Board Indicators | 500 | LED Indication | Green | 3 mm | 568 nm | 20 mcd | Through Hole | Tinted, Diffused | 2 Single Color LEDs, Bi-Level | Dome | 40 deg | 0.5398 gr | ||||||||||||||||||||||||||||||||||||||||||
ترانزیستور - TLP۱۸۱(GB-TPL,F,T) Toshiba شماره لبخند: 757-TLP181(GB-TPL,F) شماره فنی قطعه: TLP181(GB-TPL,F,T) | قیمت: ۴۱,۶۰۰ تومان موجودی: 17
| 757-TLP181(GB-TPL,F) | TLP181(GB-TPL,F,T) | Toshiba | Transistor Output Optocouplers DC Transistor Miniflat | Transistor Output Optocouplers | YES | SOP-4 | NPN Phototransistor | 1 Channel | 16 mA | 3750 Vrms | 1.3 V | 5 V | 200 mW | - 55 C | + 110 C | Cut Tape / Reel / Bulk | 600% | Transistor Output Optocouplers | 3000 | Optocouplers | 1 Channel | 80 V | 10 mA | 0.4 V | TLP181 | 2.5 mm | 3.6 mm | 4.4 mm | 80 V | SMD/SMT | 3 us | 2 us | ||||||||||||||||||||||||||||||
قیمت: ۲۰,۸۰۰ تومان موجودی: 160

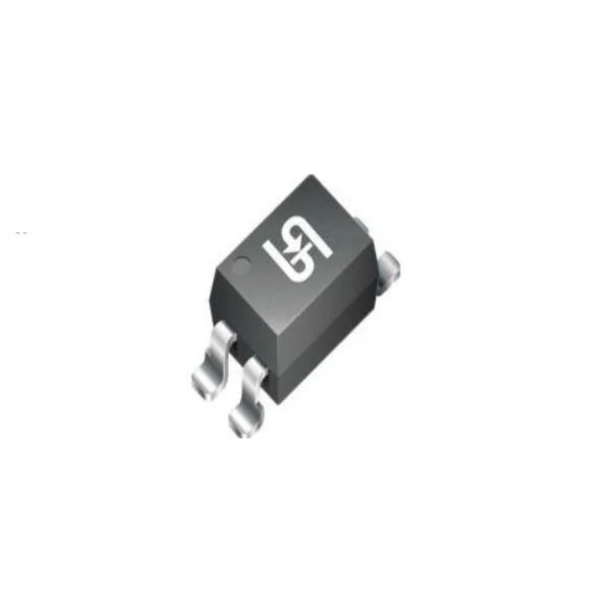

| 821-TPC817S1ARAG | TPC817S1A RAG | Taiwan Semiconductor | Transistor Output Optocouplers VCEO=80V, IF=50m, CTR:80~160% DC Input Phototransistor | Transistor Output Optocouplers | YES | SOP-4 | Phototransistor | 1 Channel | 50 mA | 5000 Vrms | 1.2 V | 6 V | 200 mW | - 40 C | + 100 C | Cut Tape / Reel / Bulk | 80 % to 160 % | Transistor Output Optocouplers | 2000 | Optocouplers | 1 Channel | 80 V | 50 mA | 0.1 V | SMD/SMT | 3 us | 4 us |
