محافظ مدار Circuit Protection
شماره فنی لبخند Labkhand part number
شماره فنی Part number
کارخانه سازنده Manufacturer
شرح فنی Description
Product category
Rohs
Product type
Working voltage
نحوه نصب Termination style
Package case
Breakdown voltage
Clamping voltage
Pppm peak pulse power diss
Vesd voltage esd contact
Vesd voltage esd air gap
Ipp peak pulse current
حداقل دمای عملیاتی Min operating temperature
حداکثر دمای عملیاتی Max operating temperature
Packaging
Subcategory
Unit weight
Mounting style
Peak pulse current
Dc sparkover
Number of electrodes
Failsafe protection y n
قطر Diameter
Length
Series
Technology
Insulation resistance
Factory pack quantity
Part aliases
Product
Type
Voltage rating
Current rating
Features
Polarity
Pd power dissipation
Qualification
Tradename
Number of channels
Operating supply voltage
Cd diode capacitance
| محصول | جزئیات محصول | شماره فنی لبخند Labkhand part number | شماره فنی Part number | کارخانه سازنده Manufacturer | شرح فنی Description | Product category | Rohs | Product type | Working voltage | نحوه نصب Termination style | Package case | Breakdown voltage | Clamping voltage | Pppm peak pulse power diss | Vesd voltage esd contact | Vesd voltage esd air gap | Ipp peak pulse current | حداقل دمای عملیاتی Min operating temperature | حداکثر دمای عملیاتی Max operating temperature | Packaging | Subcategory | Unit weight | Mounting style | Peak pulse current | Dc sparkover | Number of electrodes | Failsafe protection y n | قطر Diameter | Length | Series | Technology | Insulation resistance | Factory pack quantity | Part aliases | Product | Type | Voltage rating | Current rating | Features | Polarity | Pd power dissipation | Qualification | Tradename | Number of channels | Operating supply voltage | Cd diode capacitance | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
قیمت: ۵,۴۱۰ تومان موجودی: 100
| SMAJ5.0A | SMAJ5.0A | Shandong Jingdao Microelectronics | ESD Protection Diodes / TVS Diodes 400W 5V | ESD Suppressors / TVS Diodes | YES | TVS Diodes | 5 V | SMD/SMT | SMA | 6.4 V | 9.2 V | 400 W | 30 kV | 30 kV | 43.5 A | - 65 C | + 150 C | Cut Tape / Reel / Bulk | TVS Diodes / ESD Suppression Diodes | 0.055 gr | |||||||||||||||||||||||||||||||||||||||||

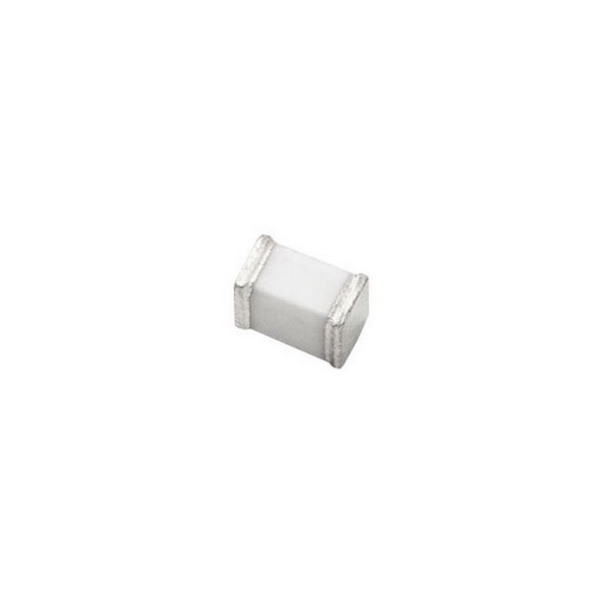

آی سی - GTCS۲۳-۷۵۰M-R۰۱-۲ Littelfuse شماره لبخند: 650-GTCS23-750M-R012 شماره فنی قطعه: GTCS23-750M-R01-2 | قیمت: ۷۲,۸۰۰ تومان موجودی: 100
| 650-GTCS23-750M-R012 | GTCS23-750M-R01-2 | Littelfuse | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors 3MM 75V 2POLE SMT GDT | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors | YES | GDTs - Gas Discharge Tubes / Surge Arresters | SMD/SMT | - 40 C | + 90 C | Cut Tape / Reel / Bulk | GDTs - Gas Discharge Tubes | 0.37 gr | SMD/SMT | 1 kA | 75 V | 2 Electrode | Failsafe Not Protected | 3 mm | 4.5 mm | GTCx2-R | Gas Discharge Tubes | 1000 MOhms | 2000 | RF1487-000 | ||||||||||||||||||||||||||||||||||||
آی سی - GTCS۲۳-۷۵۰M-R۰۱-۲ Semitehelec شماره لبخند: GTCS23-750M-R01-2 شماره فنی قطعه: GTCS23-750M-R01-2 | قیمت: ۸,۹۰۰ تومان موجودی: 3000
| GTCS23-750M-R01-2 | GTCS23-750M-R01-2 | Semitehelec | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors 3MM 75V 2POLE SMT GDT | Gas Discharge Tubes - GDTs / Gas Plasma Arrestors | YES | GDTs - Gas Discharge Tubes / Surge Arresters | SMD/SMT | - 40 C | + 90 C | Cut Tape / Reel / Bulk | GDTs - Gas Discharge Tubes | 0.37 gr | SMD/SMT | 1 kA | 75 V | 2 Electrode | Failsafe Not Protected | 3 mm | 4.5 mm | GTCx2-R | Gas Discharge Tubes | 1000 MOhms | 2000 | RF1487-000 | ||||||||||||||||||||||||||||||||||||

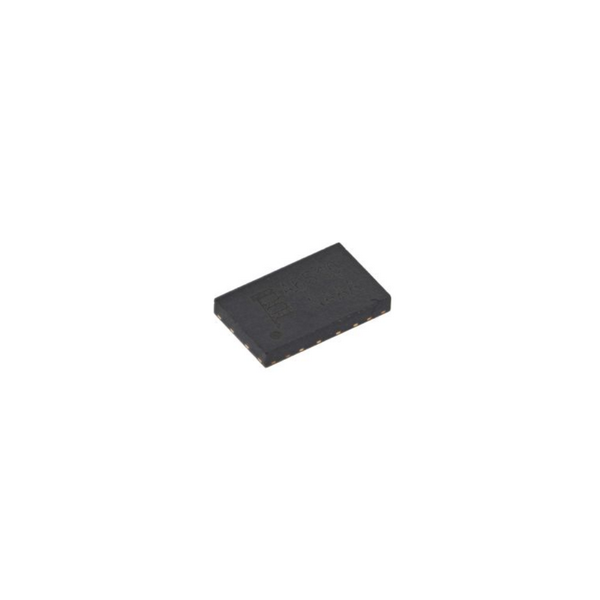

آی سی ترانزیستور - TBU-CA۰۶۵-۱۰۰-WH Bourns شماره لبخند: 652-TBU-CA065-100-WH شماره فنی قطعه: TBU-CA065-100-WH | قیمت: ۱۰۳,۵۸۰ تومان
| 652-TBU-CA065-100-WH | TBU-CA065-100-WH | Bourns | Surge Suppressors Bi-directional TBU | Surge Suppressors | YES | Surge Suppressors | SMD/SMT | DFN | - 40 C | + 125 C | Cut Tape / Reel / Bulk | Surge Suppressors | 2.155 gr | PCB Mount | TBU-CA | 3000 | Board Level Protection | High Speed Protector | 300 V | 100 mA | Overcurrent and Overvoltage | |||||||||||||||||||||||||||||||||||||||
قیمت: ۶,۶۶۰ تومان موجودی: 999
| 576-SMBJ12 | SMBJ12 | Littelfuse | ESD Suppressors / TVS Diodes 600W 12V 10% Uni-Directional | ESD Suppressors / TVS Diodes | YES | TVS Diodes | 12 V | SMD/SMT | DO-214AA-2 | 15.4 V | 20.895 V | 600 W | 30.2 A | - 65 C | + 150 C | Cut Tape / Reel / Bulk | TVS Diodes / ESD Suppression Diodes | 0.093 gr | SMBJ | 3000 | Unidirectional | ||||||||||||||||||||||||||||||||||||||||
دیود ۱.۵KE۱۳A Littelfuse - ESD Suppressors / TVS Diodes ۱۵۰۰W ۱۱.۱V شماره لبخند: 576-1.5KE13A شماره فنی قطعه: 1.5KE13A | قیمت: ۸,۹۴۰ تومان موجودی: 85
| 576-1.5KE13A | 1.5KE13A | Littelfuse | ESD Suppressors / TVS Diodes 1500W 11.1V Uni-Directional | ESD Suppressors / TVS Diodes | YES | TVS Diodes | 11.1 V | Axial | DO-201-2 | 13.7 V | 18.2 V | 1.5 kW | 83.5 A | - 55 C | + 175 C | Cut Tape / Reel / Bulk | TVS Diodes / ESD Suppression Diodes | 1.2 gr | 1.5KE | 1200 | Unidirectional | 6.5 W | ||||||||||||||||||||||||||||||||||||||
قیمت: ۱۷,۰۶۰ تومان موجودی: 504
| 576-1.5KE36A | 1.5KE36A | Littelfuse | ESD Suppressors / TVS Diodes 1500W 30.8V Uni-Directional | ESD Suppressors / TVS Diodes | YES | TVS Diodes | 30.8 V | Axial | DO-201-2 | 37.8 V | 49.9 V | 1.5 kW | 30.5 A | - 55 C | + 175 C | Cut Tape / Reel / Bulk | TVS Diodes / ESD Suppression Diodes | 1.2 gr | 1.5KE | 1200 | Unidirectional | 6.5 W | |||||||||||||||||||||||||||||||||||||||
قیمت: ۳۵,۳۶۰ تومان موجودی: 2
| 576-1.5KE36CA | 1.5KE36CA | Littelfuse | ESD Suppressors / TVS Diodes 1500W 30.8V Bi-Directional | ESD Suppressors / TVS Diodes | YES | TVS Diodes | 30.8 V | Axial | DO-201-2 | 37.8 V | 49.9 V | 1.5 kW | 30.5 A | - 55 C | + 175 C | Cut Tape / Reel / Bulk | TVS Diodes / ESD Suppression Diodes | 1.2 gr | 1.5KE | 1200 | Bidirectional | 6.5 W | |||||||||||||||||||||||||||||||||||||||
قیمت: ۸,۷۴۰ تومان
| 625-MSP5.0AHM3 | MSP5.0AHM3/89A | Vishay Semiconductors | ESD Suppressors / TVS Diodes 150W 5V Unidirect | ESD Suppressors / TVS Diodes | YES | TVS Diodes | 5 V | SMD/SMT | DO-219AD-2 | 6.4 V | 9.2 V | 100 W | - 55 C | + 150 C | Cut Tape / Reel / Bulk | TVS Diodes / ESD Suppression Diodes | MSP5.0A | 4500 | Unidirectional | AEC-Q101 | eSMP | ||||||||||||||||||||||||||||||||||||||||
قیمت: ۹,۷۸۰ تومان موجودی: 203
| 576-P6KE6.8A | P6KE6.8A | Littelfuse | ESD Suppressors / TVS Diodes 5.8Vr 600W 57A 5% Uni-Directional | ESD Suppressors / TVS Diodes | YES | TVS Diodes | 5.8 V | Axial | DO-204AC-2 | 7.14 V | 10.5 V | 600 W | 58.1 A | - 55 C | + 175 C | Cut Tape / Reel / Bulk | TVS Diodes / ESD Suppression Diodes | 0.4252 gr | P6KE | 4000 | P6KE6.8A. | Unidirectional |
